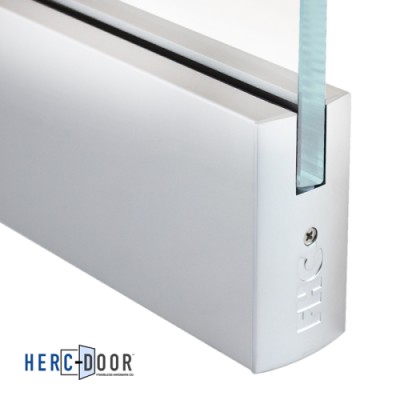

DR4TPS12SL,CRL Polished Stainless 1/2" Glass 4" Tapered Door Rail With Lock - 35-3/4" Length

• 35-3/4" (908 mm) Length for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance system, the CRL Wedge-Lock® Door Rail System features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). A totally new concept for securing the glass in the door rail. It works by applying pressure from the bottom of the door rail, using two glass retaining aluminum extrusions via a flat stainless steel bar. As this bar is pulled down with socket head cap bolts, pressure is applied to the glass retaining aluminum extrusions. The bottom of the extrusions are at an angle and fit into an angled groove in the door rail. As the glass retaining extrusions are being pulled down, the angled wedge in the door rail also pulls the glass retaining extrusions together. This action, along with our specially designed door retaining gasket, creates a tremendous amount of force (more than 900 lbs.) in our 9" (228.6 mm) Corner Rail. That's 100 lbs. per inch. Imagine how much force is created in our full length 35-3/4" (908 mm) Door Rails!

NOTE: Actual Product Height : 4-1/16" (103 mm)
