MODEL#CV1E337

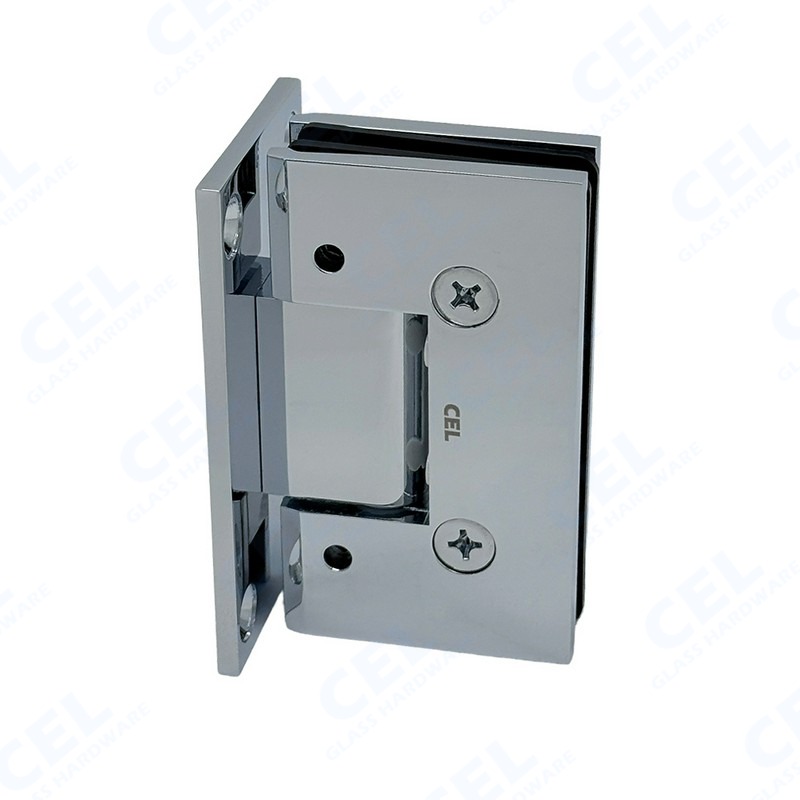

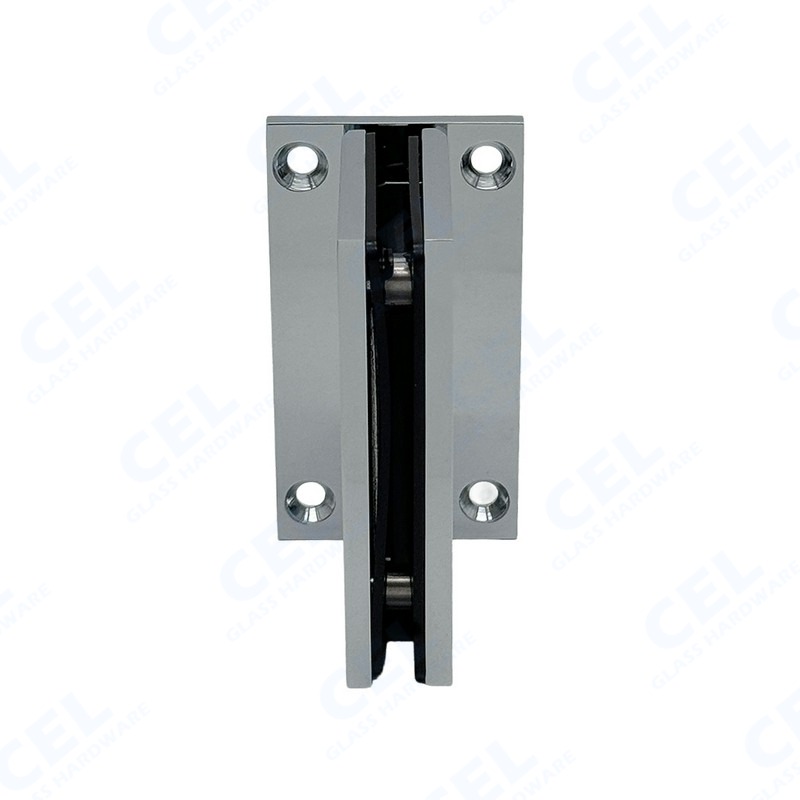

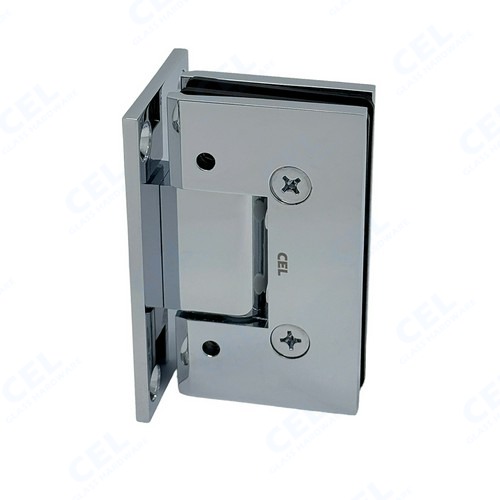

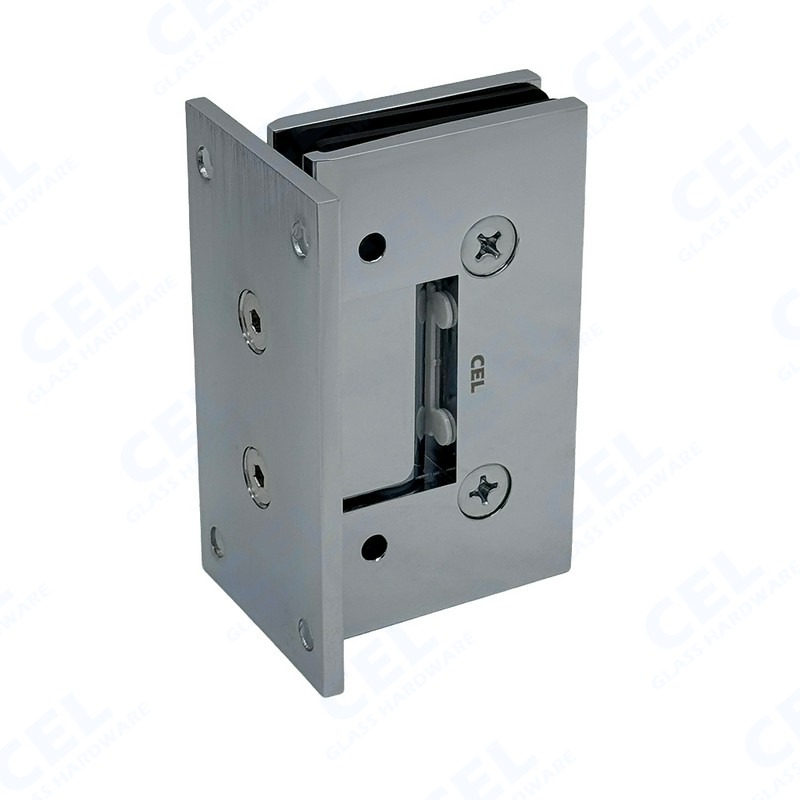

Adjustable Wall Mount Full Back Plate Hinge for Shower Door

Height (inches) 4"
Adjustable YES
Self-Centering YES
Max. Door Width  (inches) 36"
Width (inches) 2 5/16"
5 Degree Pre-Set NO
Max. Door Weight for 2 Hinge (lbs) 110 LBS
Max. Door Weight for 3 Hinge (lbs) 140 LBS



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.

Adjustable to Any Angle Up to 90 Degrees without Removing Door

Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
