V1E044:CV1E044BN-CEL

MODEL# CV1E044

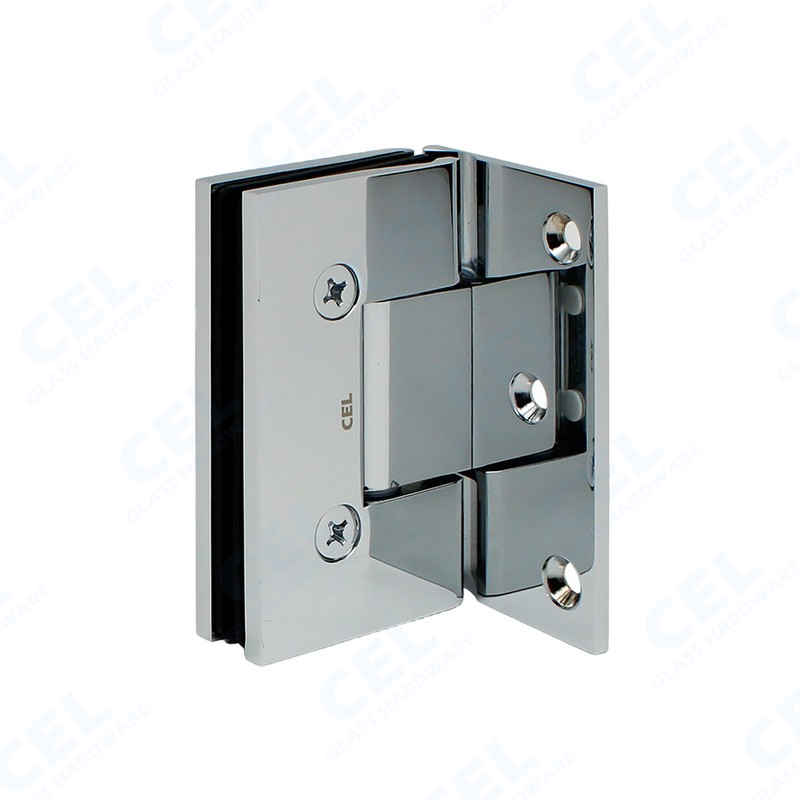

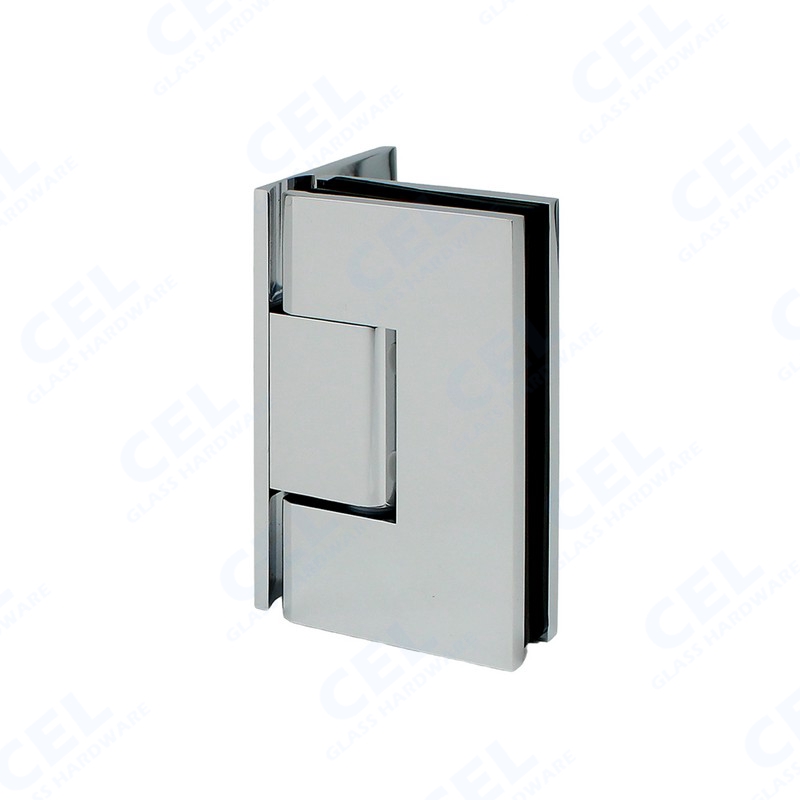

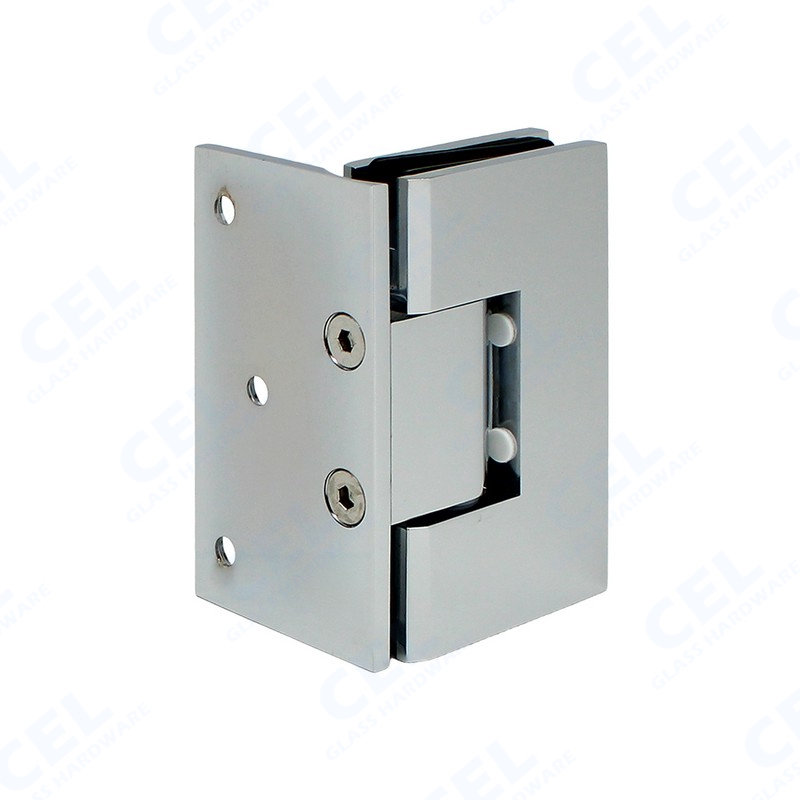

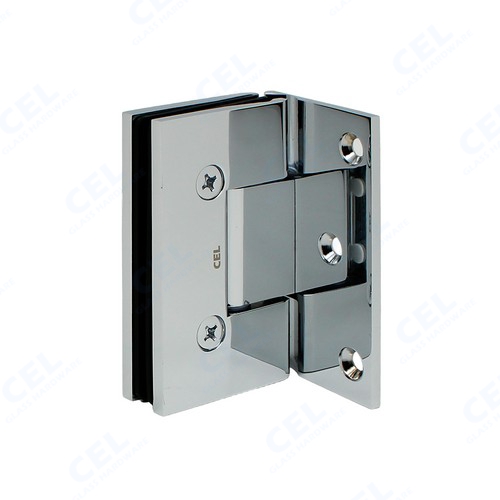

Wall Mount Offset Back Plate Hinge for Frameless Shower Door

SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

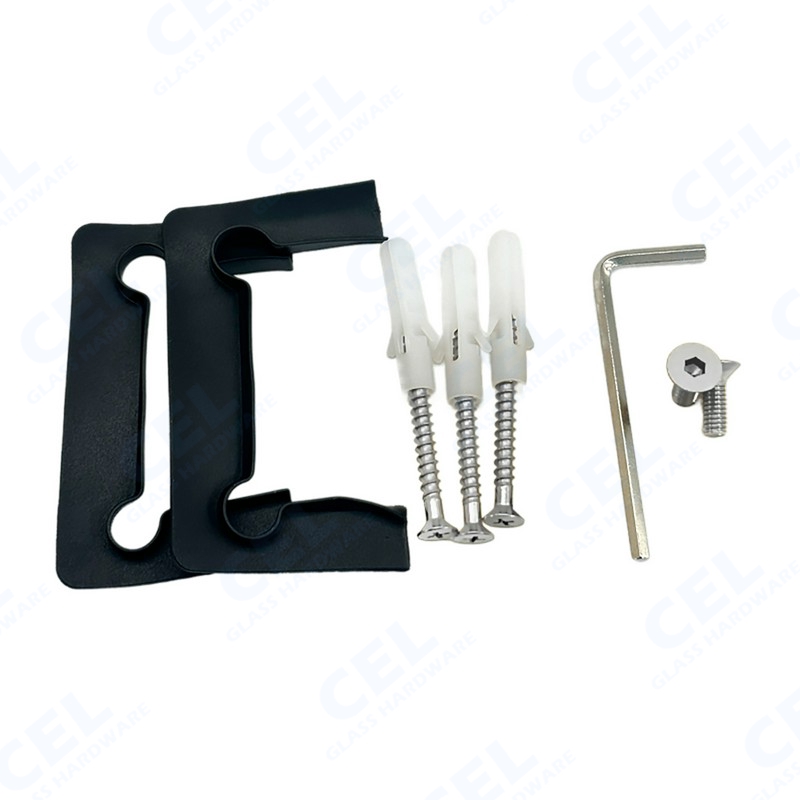

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.

Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.
