Model# CGEN092

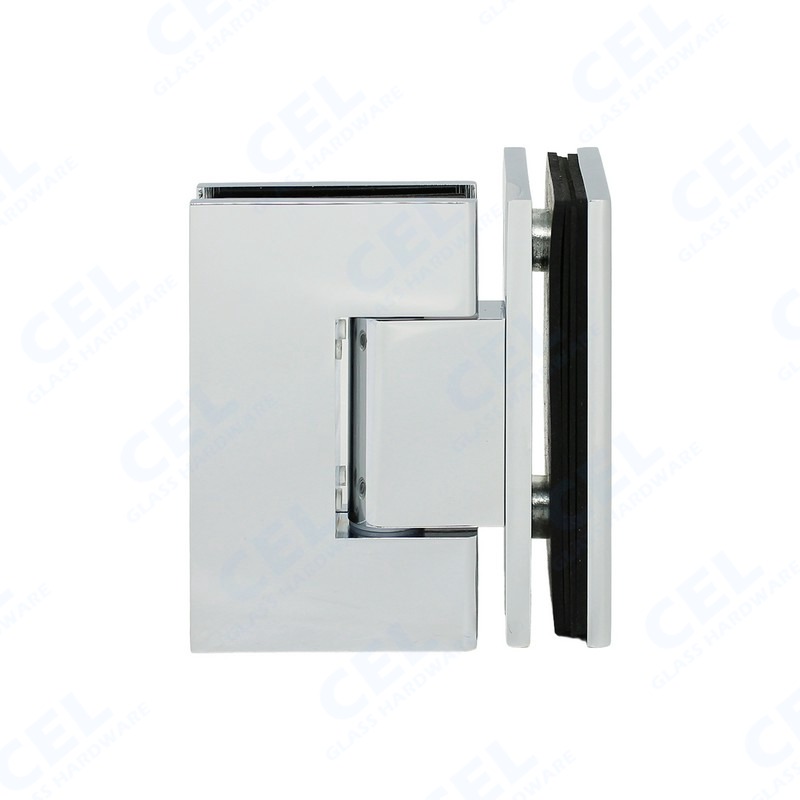

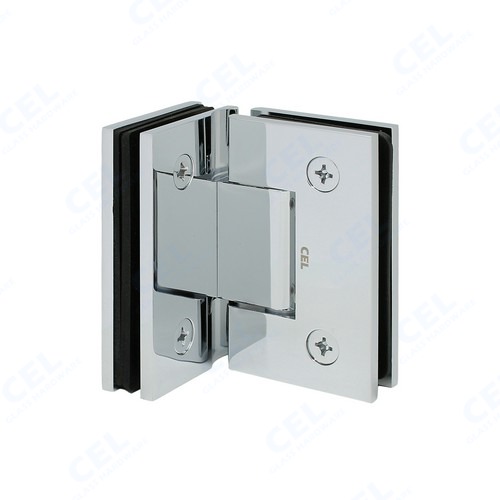

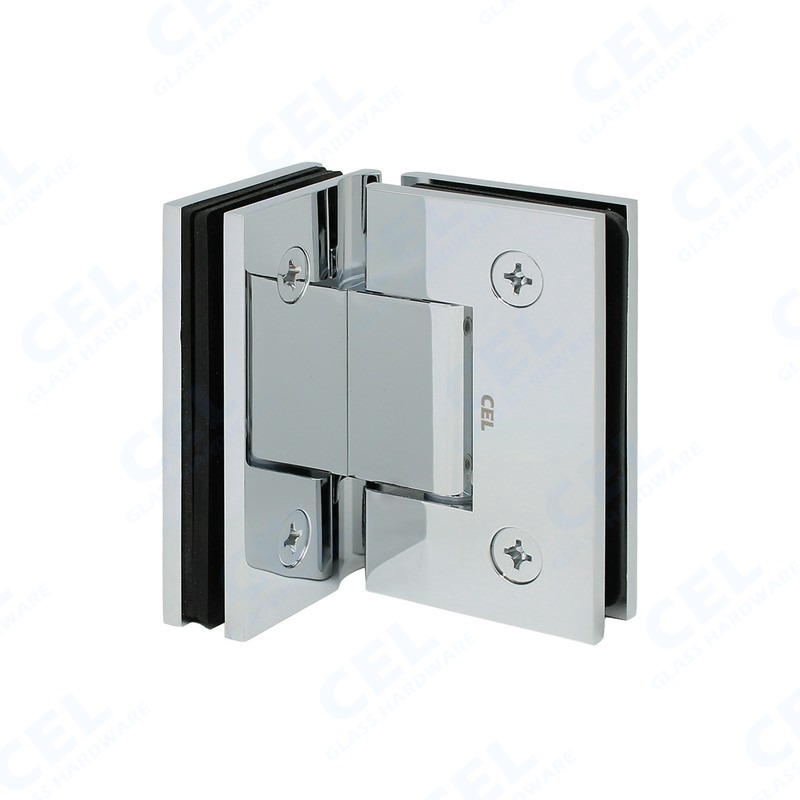

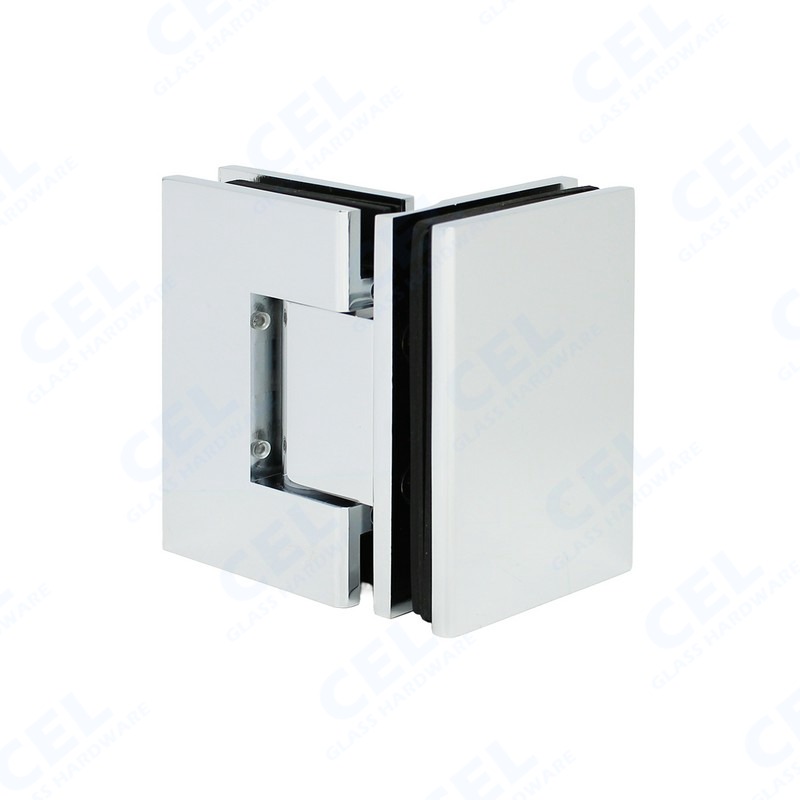

90 Degree Glass to Glass Hinge for Frameless Shower Door

Compare to : GEN092

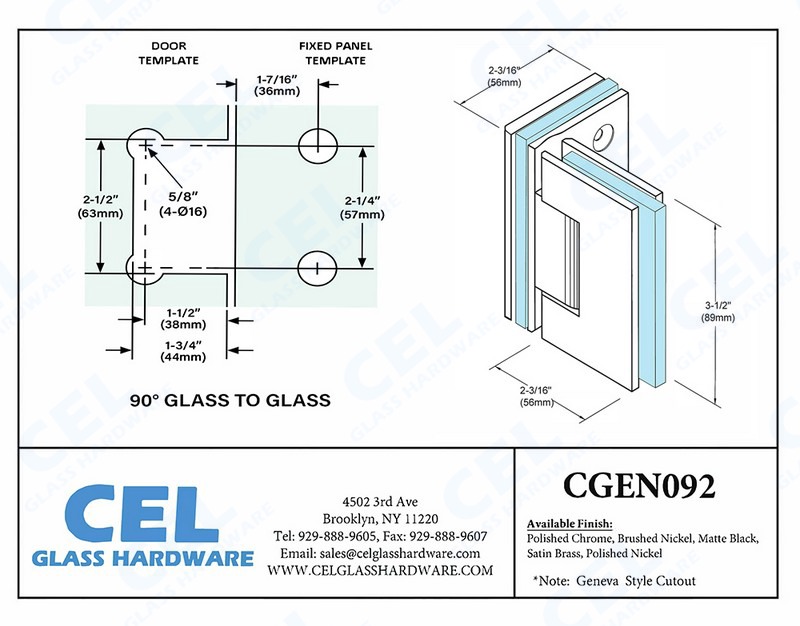

Height (inches) 3 1/2"
Edge Profile Square
Material Brass
Adjustable NO
Self-Centering YES
Max. Door Width for 2 Hinges (inches) 28"
Max. Door Width for 3 Hinges (inches) 32"
Width -Door Portion (inches) 2 3/16"
Width-Sidelite Portion (inches) 2 1/4"
Mounting Type (Degree) Wall Mount (90°)
Glazing Thickness (Inches) 3/8" to 1/2"
5 Degree Pre-Set NO
Max. Door Weight for 2 Hinge (lbs) 80 LBS
Max. Door Weight for 3 Hinge (lbs) 120 LBS



SPECIFICATIONS:

Glass Thickness: 3/8" to 1/2"

Hinge Swings: 90 degree in and 90 degree Out

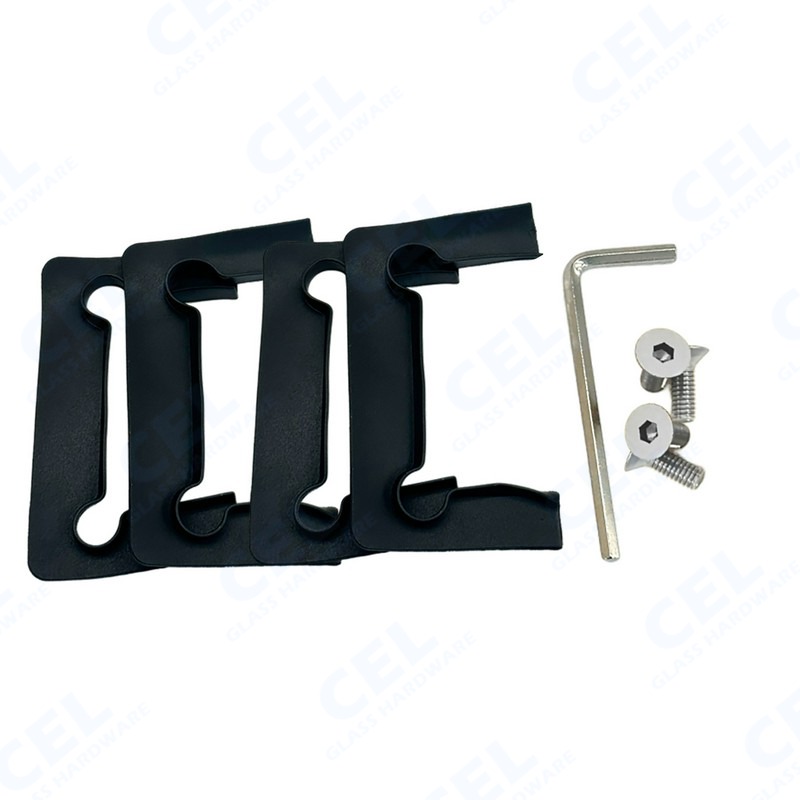

Included: Hinge Body, Gaskets, Screws and Template

Use for Residential Bath and Commercial Hotel Applications.



Gasket:

For 3/8" (10mm) Glass, Use one thick Gasket on each side

For 1/2" (12mm) Glass, Use one thin Gasket on each side

Care & Cleaning Guidelines:

Your shower door should be dried daily with a soft towel or cloth to ensure its original finished. Use only small amount of liquid, gentle, cleaner. Do not use harsh and abrasive chemicals on the hardware. Many of the components are coated with a clear lacquer that will become damaged beyond repair.



Recommendation: Use of only tempered safety glass. Do not power tool when installing these hinges.

Relative Products
CBGC0F90
BGC0F90:CBGC0F90MB-CEL
Matte Black
Shipping Pick Up
CBOL1L
CBOL1LMB
Matte Black
Shipping Pick Up
CT029S
KNOB:CT029S-SSS, Thru-Glass Pull
Brushed Stainless Steel
Shipping Pick Up
CBGC180
BGC180:CBGC180CH-CEL
Polished Chrome
Shipping Pick Up

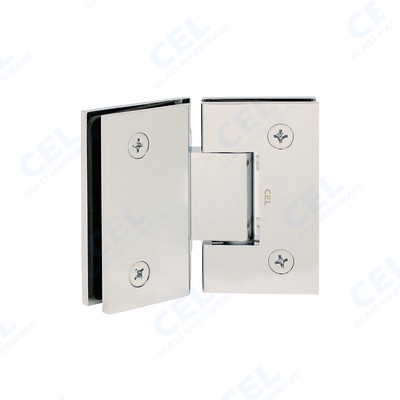

CGEN045
GEN045:CGEN045BN-CEL
Brushed Nickel
Shipping Pick Up
C2702A
SUPPORT BAR:C2702ABN, Round, Glass to Glass
Brushed Nickel 29 1/2-41 3/8
Shipping Pick Up
CS1LB
SWEEP:CS1LB
98"
Delivery Pick Up

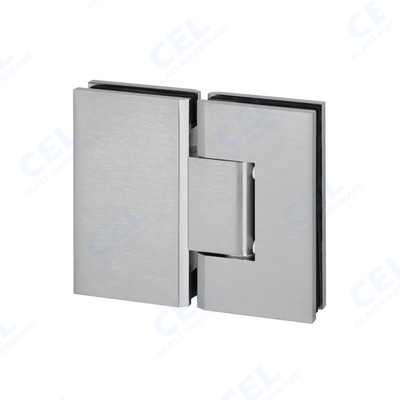

CV1E180
